Precision in flare measurement paves the way for a sustainable future in the oil and gas industry

NEIL BIRD, Fluenta

MethaneSat, a project spearheaded by the Environmental Defense Fund, is revolutionizing monitoring of flaring and general methane leakage by providing high-resolution satellite data. By capturing precise and frequent data, MethaneSat can identify and quantify point emissions sources or combine measurements in a locality—or even a whole region—enabling anyone to have oversight and hitherto unprecedented detail on which sites are emitting methane.

Of course, the oil and gas industry is under ever-intensifying environmental scrutiny, with flaring, in particular, coming under critical investigation. As the world grapples with the urgent need to mitigate climate change, the focus on reducing greenhouse gas emissions has sharpened. Flaring not only wastes a valuable energy resource, but it also contributes significantly to atmospheric pollution, making it a high-priority target for environmental groups and regulators.

Ensuring the transparency, accuracy and reliability of measurement and reporting in this sector has become paramount. That’s not just for regulatory compliance, but also for environmental accountability and the implementation of effective reduction strategies.

The industry faces growing pressure from governments, environmental organizations, and the public to adopt more sustainable practices. As the push for cleaner energy intensifies, the role of precise data in driving meaningful environmental action cannot be overstated.

FACING TIGHTENING EPA REGULATIONS

The EPA is planning several significant rule changes to address gas flaring and methane emissions in the oil and gas sector. In August 2023, the EPA announced a rule that aims to dramatically reduce methane emissions, and it is backing this up with fiscal muscle. Operators not measuring or meeting the Net Heating Value requirements for their flare gas are no longer able to claim the 98% combustion efficiency threshold, which has been a long-time industry assumption. The situation gets worse for operators not continuously measuring their flare gas, or those that don’t have continuous monitoring of pilot lights (40 CFR 98, subpart W).

This is on top of new regulations introducing a phased ban on routine flaring of natural gas from new oil wells, where it is only allowed in emergencies. Existing wells emitting above 40 tons per year are restricted from flaring, unless there are no feasible alternatives or sales lines​.

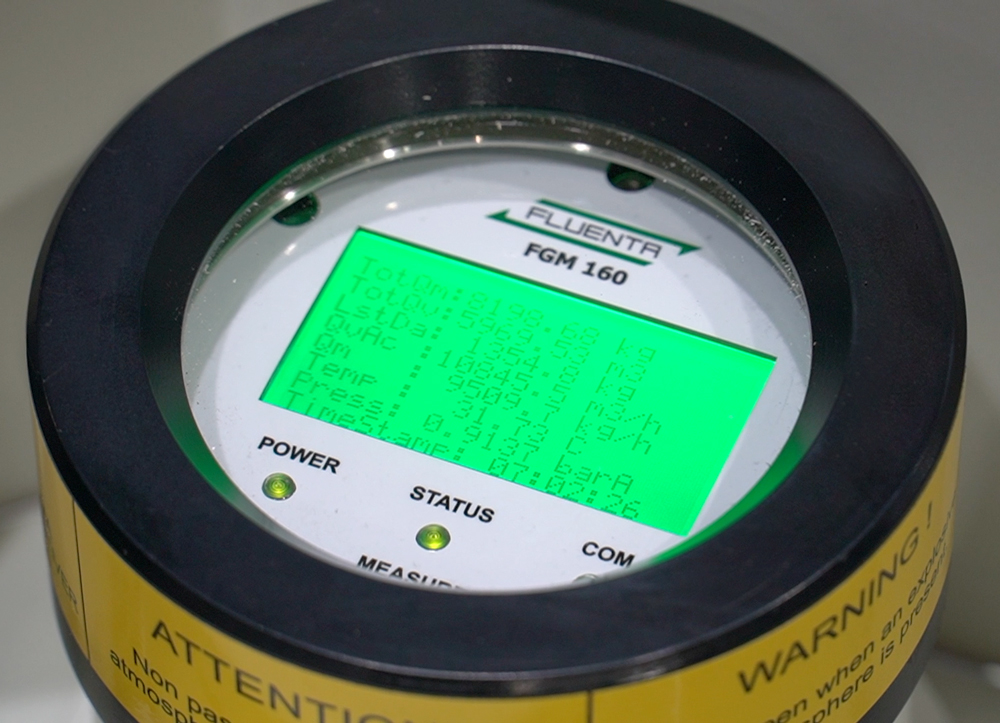

Fig. 1. Fluenta FGM 160 ultrasonic flowmeter display.

The EPA has also updated the Greenhouse Gas Reporting Program to enhance transparency and accuracy in emissions data. This involves incorporating advanced technologies, such as satellite data to identify super-emitters and requiring direct monitoring of key emission sources​ (US EPA)​. New criteria and standards for equipment and leak detection have been set, including zero-emissions standards for pneumatic pumps and controllers and specific protocols for addressing methane leaks​.

These tightening regulatory changes are all part of the broader U.S. Methane Emissions Reduction Plan, supported by the Inflation Reduction Act, which aims to cut methane emissions across various sectors, including oil and gas. In short, accurate measurement has never been more important.

THE TECHNOLOGY OF MEASUREMENT

Ultrasonic flare measurement has become the standard for monitoring flare gas. Its ability to address variable gas velocity, composition, density and speed of sound challenges is unparalleled. Whereas other methods, like pressure meters, turbine meters, Coriolis mass flowmeters, thermal mass flowmeters and optical flowmeters, often struggle with accuracy under dynamic conditions, ultrasonic sensors offer a robust and reliable solution.

Ultrasonic sensors accurately measure the transit time of sound waves through the gas, with a level of accuracy measured in nanoseconds. Their adaptability allows them to adjust to changes in gas properties continuously without recalibration, ensuring consistent accuracy even during rapid fluctuations, Fig. 1.

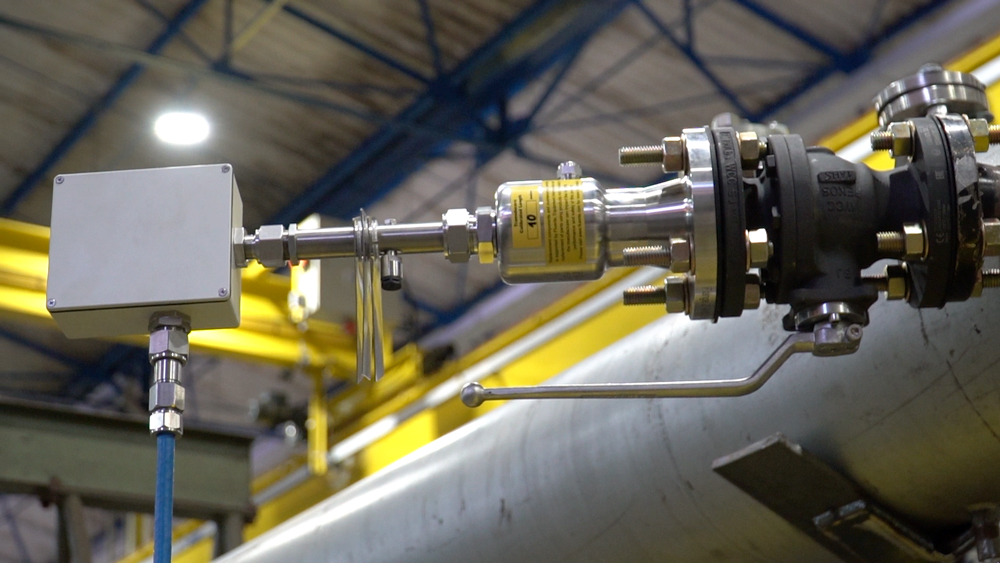

Fig. 2. Installed FlarePhase ultrasonic transducer mounted on a flare gas line.

Furthermore, with the optimal configuration, ultrasonic flare measurement systems are non-intrusive, minimizing maintenance needs and operational disruptions while ensuring stability in blow-down scenarios. Their durability and reliability make them suitable for harsh industrial environments where other methods may fall short. As a result, ultrasonic technology is now the preferred choice for flare gas monitoring, ensuring both efficiency and safety in operations, Fig. 2.

THE CHALLENGES ASSOCIATED WITH USING ULTRASOUND

Ironically, carbon dioxide (CO₂), a critical gas to measure for assessing the environmental impact of gas flaring, is also one of the hardest to measure accurately, when even relatively low concentrations of the gas are present in flare lines.

Measurement of CO₂ is difficult, due to the gas’ high attenuation of ultrasonic frequencies.

The molecular structure of CO₂, comprising one carbon atom and two oxygen atoms, has distinct vibrational modes that actually absorb ultrasonic energy. When ultrasonic waves pass through CO₂, the energy can resonate with the CO₂ molecules' natural frequencies, causing significant energy absorption and conversion into internal vibrations.

CO₂'s physical properties, such as density and compressibility, further exacerbate the problem of attenuation. These characteristics combined mean regular ultrasonic meters are all-but-useless in scenarios, where concentrations of 30% or more are present.

In practice, the high attenuation of CO₂ complicates ultrasonic inspection, imaging and measurement techniques. Addressing this issue requires careful selection of ultrasonic frequencies and potentially employing alternative methods or compensatory techniques to mitigate attenuation effects, ensuring accurate results.

Solving the problem of measuring CO₂ in flare gas opens up the possibility of using the most accurate ultrasonic sensors in a much wider range of applications than is presently the case. When combined with gas composition data, this, therefore, allows for better optimization of flare efficiency, reducing waste and improving energy use.

A SOLUTION TO THE GLOBAL FLARE GAS MEASUREMENT MARKET

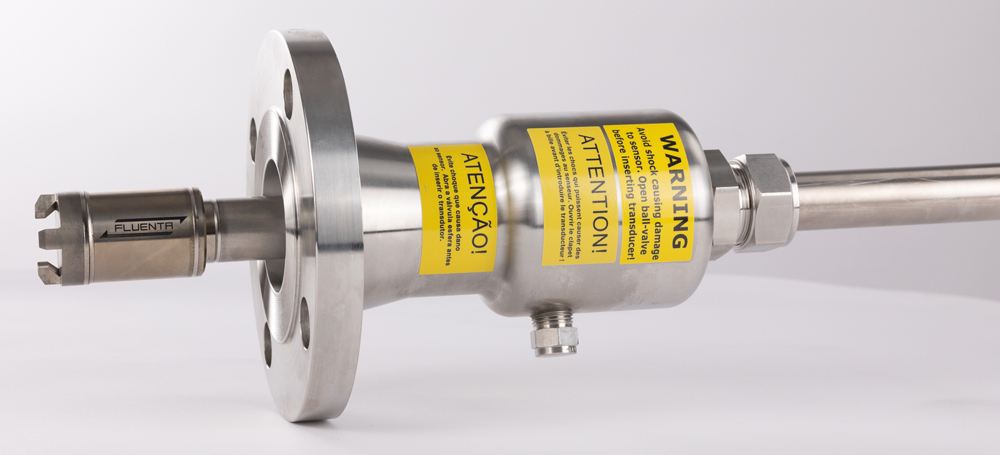

Fig. 3. Fluenta FlarePhase ultrasonic transducer.

In late 2022, FlarePhase transducers from Fluenta were launched, aimed at offering a broader operating temperature range compared to other options, but their resistance to extreme temperature fluctuations is just one component. There is an unsatisfied demand for ultrasonic measurement systems that can handle processes with much higher CO₂ content, and FlarePhase technology offers a significant advantage in this regard, Fig. 3.

In many regions, ultrasonic measurement of flare gas is mandated for its accuracy, regardless of gas composition. However, the presence of high CO₂ levels prevents this during certain process scenarios, and so a combination of measurement technologies tends to be used—with all the incumbent costs, drawbacks and maintenance that comes with it.

FlarePhase, a new-generation sensor from Fluenta, operates differently from most ultrasonic transducers. All ultrasonic systems require transmitter and receiver resonant frequencies to be matched, to achieve the optimum signal strength. Even slight deviations, which result from in-process temperature swings, can cause the signal strength to fall off rapidly.

In FlarePhase transducers, the transducers' resonant frequencies are continuously measured, and the drive signals are adjusted in real time, so they are always perfectly matched. This has obvious benefits in scenarios where temperature swings are commonplace, but it can also offer transformative performance when dealing with high levels of CO₂. Other techniques, such as signal amplification, can help a bit, but their benefits are marginal when compared with resonance tracking.

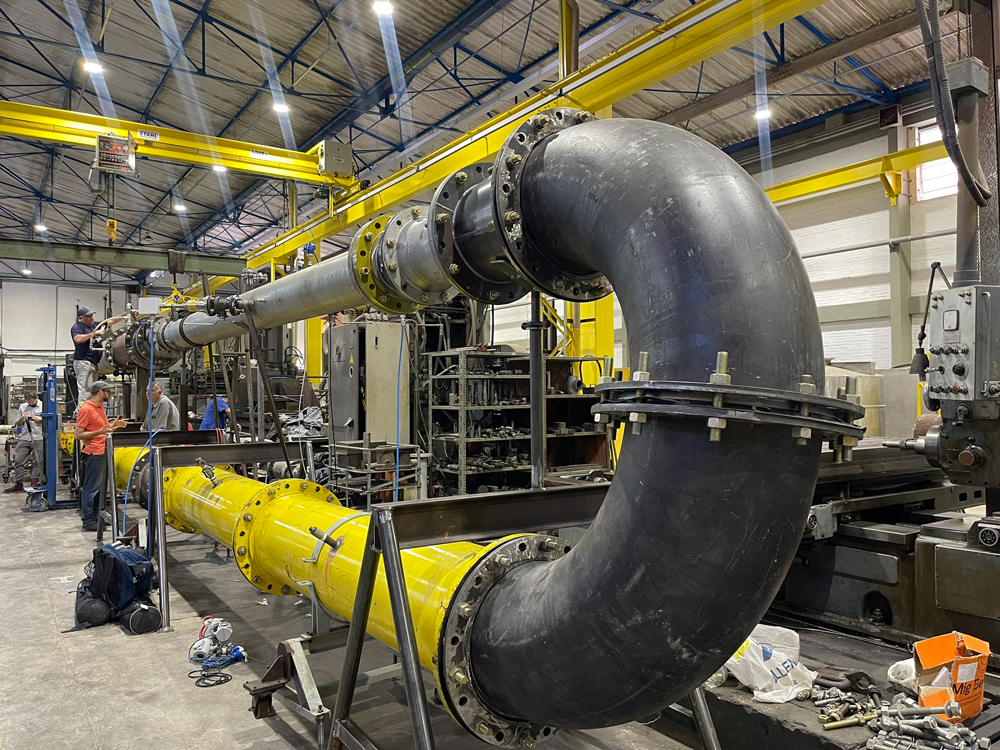

Fig. 4. Fluenta’s large-scale CO₂ flare gas test facility at IPT Brazil.

A very thorough approach to signal processing enhances the received signal, allowing the time-of-flight measurements to be accurate to nanoseconds, even where the noise-floor would ordinarily bury such tiny signals. This unique approach allows FlarePhase transducers to maintain the highest accuracy, even when faced with high CO₂-induced signal attenuation.

A WELL-TESTED SOLUTION

Extensive reference measurements have been conducted at Fluenta's test facilities at both Cambridge, UK, and a specially constructed facility at IPT in Brazil, Fig. 4.

In Cambridge, it was found that in a 12-in. pipe with velocities of around 25ms^-1, CO₂ concentration could measure with over 94% (the maximum concentration possible in our in-house flow loop). Further tests at IPT Brazil confirmed stable and accurate flow measurements, even with a mixture of 90% CO₂ through the 12-in. spool and 70% CO₂ through the 16-in. spool, in velocities of up to 75ms^-1. All of these were enough to confidently lead the pack in high CO₂ measurement.

For the tests, ITP Brazil constructed a 20-in. flow loop facility, specifically tailored to Fluenta's needs. This CO₂ loop featured pipes with 12-to-20-in. diameters, supporting maximum flows of 16,000 m³/h and varying linear flows, depending on the pipe size. The loop included a heat exchanger to stabilize gas temperature, while a real-time analyzer and a gas chromatograph verified the CO₂/air mixtures, up to 99% CO₂.

NEIL C. BIRD holds bachelor’s and master’s (Oxon) degrees in physics from Oxford University, as well as a doctorate degree from the University of Twente in The Netherlands. He has held various senior technical positions, including Philips R&D director (UK and The Netherlands), R&D director at ThermoFisher (Cambridge), head of R&D at Xaar (Cambridge), Engineering director and latterly, chief scientist at Fluenta (Cambridge). He has a track record of innovation, including more than 30 U.S. patents in various technical areas, such as ASIC design, liquid crystal display, mobile network, and ink jet printing. In his current role, he has developed new signal processing methods for ultrasonic gas flow measurement.
