Magma Global delivers world’s first high pressure composite riser pipe to HWCG

By Magma Global on 5/13/2021

Magma Global announced delivery of the world’s first high-pressure composite riser pipe to HWCG’s storage location on the U.S Gulf Coast, completing its rapidly deployable Offset Flexible Riser (OFR) system. HWCG commissioned Magma Global, manufacturer of PEEK and carbon-fiber composite m-pipe®, to qualify and manufacture a high pressure, high temperature m-pipe® to be used as a flexible riser connection to enhance HWCG’s rapid deployment emergency well containment system.

Magma Global production team ships first composite riser to HWCG
Magma Global production team ships first composite riser to HWCG

The lightweight, flexible m-pipe section will provide additional flow and capture emergency response options for HWCG’s members in the U.S. Gulf of Mexico. The m-pipe® is designed for rapid installation and is suitable for responses where vertical access is restricted and an offset is required such as: i) shallow water depths where the presence of combustible and volatile compounds affect personnel safety or ii) where access under a floating production facility is needed. The system may also be used in deeper waters where more flexibility is desired in managing the marine systems during a response.

Deployed straight from the handling apparatus, the 800 ft long section of m-pipe® will provide a flexible riser connection between the capping stack placed on the incident well and a rigid riser suspended from a MODU. The m-pipe® will form a horizontally oriented “S” shape between the capping stack and the rigid pipe riser thus decoupling motion and decreasing surface station-keeping requirements for the temporary production facility. Once in operation, hydrocarbons released from the well flow through the complete riser flow path and are processed on board the temporary production facility to be collected in shuttle tankers for transportation.

World

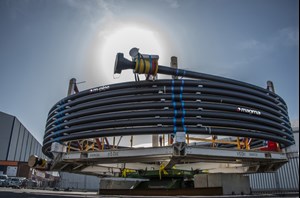

World's first composite riser heads to Houston for emergency well containment

HWCG specified a pipe that would need to be compliant with movement and resistant to degradation from continuous exposure to hydrocarbons at pressures up to 10,000 psi and temperatures up to 250°F and would offer an alternative to conventional non-bonded flexible pipe. Magma qualified the 6-inch m-pipe® to meet the project requirements and completed manufacture and FAT testing during the Covid-19 pandemic lock-down.

HWCG is one of two deepwater oil and gas emergency response consortiums established for the U.S. Gulf of Mexico following the Macondo blowout incident in 2010. HWCG’s response provides for the installation of a capping stack within 7-14 days and the ability to commence contingent flow and capture operations within 18 days assuming no weather or other uncontrollable delays.  Once installed the m-pipe® is qualified to operate for at least 6 months, which is enough time to drill a relief well to provide final well kill and containment.

 “HWCG was one of the first organizations to accept the responsibility for providing equipment and personnel to respond rapidly and safely to a deepwater well incident,” said Mitch Guinn, Technical Director for HWCG.“The addition of a flexible riser component to our suite of response equipment further enhances our ability to respond even more efficiently by allowing more flexibility in selecting a temporary production facility and enabling the selected facility to increase its operating window regarding weather conditions. The addition of Magma’s composite m-pipe® is a huge benefit for our Members and is seen as one of their critical response components. We hope this work will open the doors to future applications of this breakthrough technology.”

“The initial concept, and subsequent evolution, of the Offset Flexible Riser builds on the industry’s use of riser technology to manage unique operating conditions and environments requiring incident well flowback as part of a well containment strategy,” said Andy Jefferies, Deep Sea Development Services, and OFR Project Manager for HWCG. “The engineering and design aspects of this breakthrough technology has been led by DSDS for HWCG. The application of the Magma m-pipe® design represents a step change in that technology and brings a time effective solution to well containment for flow and capture operations for all scenarios but is particularly well suited to shallow water, high-rate gas wells, and wells requiring an offset flow and capture operation.”

“This is a bittersweet success for Magma. We are proud to supply the first composite flexible riser for high pressure, high temperature hydrocarbons, for use in the Gulf of Mexico yet we hope it will never have to be used,” said Martin Jones, CEO at Magma Global. “Nevertheless, m-pipe doesn’t corrode or degrade over time and hence will always be ready to enable HWCG to install at speed and with confidence.”

Key benefits:

  • Technology enabler for HWCG’s Offset Flexible Riser Project – a flexible riser pipe with a mid-water connection to a rigid steel riser
  • Allows an offset connection to reach the incident well which may provide access underneath existing floating structures
  • Allows more flexibility in steel riser selection to match the required water depth and flow rate for flow and capture solutions
  • Allows more flexibility regarding MODU selection due to less stringent station-keeping requirements
  • Rapidly deployable using single vessel of choice
  • Accommodates water depths from 350 ft to 10,000 ft with pressure rating of up to 10,000 psi and flowing temperature rating of up to 250° F
