Engineered nanoparticles mitigate frac hits: Reaching more in-place hydrocarbons increases production

An innovative treatment method uses pressure and surface-modified nanoparticles to mitigate frac hits and create a favorable fluid-flow environment.

Stephen Gornick, Yusra Khan Ahmad, John Southwell, Nissan Chemical America Corporation

Frac hits are costing operators billions of dollars in lost production. To help alleviate this costly issue, Nissan Chemical America Corporation (NCA) has introduced a new treatment method to mitigate the effects of frac hits and increase production in initial wells, in addition to infill projects.

The patent-pending treatment method uses fluid in combination with highly surface-modified nanoparticles. The combination provides a temporary high-stress fracture environment in the initial well, to prevent neighboring fracture interactions using the fluid. The highly surface-modified nanoparticles act to reduce interfacial tension, modify wettability, and disjoin and fragment hydrocarbons to create a favorable fluid-flow environment, which enables increased and sustained production.

THE CHALLENGE

As development of unconventional reservoirs continues with tighter and tighter well spacing, some of the current production and subsequent reserves of the initial well are often compromised. In many cases, the initial well consists of large, permeable fracture networks connecting to much tighter matrix reservoir rock. By the time the infill well is drilled, the initial well in the spacing unit may have already produced several hundred thousand barrels of fluid. This depletion often creates a lower-stress environment around the induced fractures of the parent well—in other words, a pressure sink may form predominantly in the fracture network.

As an infill well is drilled and completed, the initial well will become more vulnerable to an intersection from a nearby propagating fracture, leading to severe production losses. In addition, fracture fluid and proppant communication may occur between the neighboring wells, also leading to an ineffective stimulation of the infill well. As the name—frac hit—suggests, a powerful force is unleashed that can also result in severe damage to production tubing, casing, and wellheads.

Infill wells often demonstrate production performance of 60% or less when compared to the existing initial well. Initial well interference can include undesirable increases in water production, as well as oil output decreases that frequently do not return to their previous levels. Numerous causes have been cited, including stress reversal, tendency of infill well fractures to grow toward initial well fracture networks, and improper well spacing.

It has been reported that the longer the initial well has been on production, the higher the likelihood of an induced stress change, resulting in a higher probability of infill well interference. Negative influences can be seen in the form of fines migration, proppant migration, or fluid pressure communication between the infill well frac zone to the initial well frac zone, and vice-versa.

CURRENT STRATEGIES

With intense pressure from c-suites and investors to cut costs and increase production, hydraulic fracture interference, or frac hits, is an increasing problem in today’s more mature unconventional fields. Operators must develop strategies to combat production losses caused by frac hits. Refracturing has been explored as a potential solution, however, there are limitations when it comes to the cost-effectiveness of this process.

A more economic strategy currently employed is re-pressurizing the initial well prior to fracturing the infill well. Re-pressurizing the initial well consists of using a fluid to fill the depleted fractures and the voided pore spaces around these fractures. While the pressurization effect is temporary, as an offset well is fractured nearby, the temporary higher-stress environment near the initial well fractures works to prevent well-to-well fracture interaction—protecting the initial well’s productivity. Figures 1, 2 and 3 show the pressure depletion and re-pressurization process in an initial well within a typical 1,280-acre spacing unit.

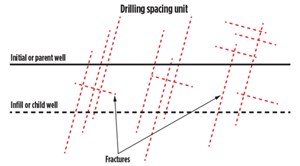

Fig. 1. The solid black line is an existing well, and the black dashed line is a new well drilled and being prepped for initial fracture stimulation. The smaller hatched lines represent natural fractures in the unconventional reservoir rock.
Fig. 1. The solid black line is an existing well, and the black dashed line is a new well drilled and being prepped for initial fracture stimulation. The smaller hatched lines represent natural fractures in the unconventional reservoir rock.
Fig. 2. Provided the initial well has produced 250,000 reservoir barrels of total fluid, the dark color represents pressure depletion associated with drainage along the fractures.
Fig. 2. Provided the initial well has produced 250,000 reservoir barrels of total fluid, the dark color represents pressure depletion associated with drainage along the fractures.
Fig. 3. To mitigate the effect of drainage of the initial well, both on the fracture efficacy of the new well and on the continued production of the initial well, water is injected into the original or initial wellbore. The water fills the high-perm fractures, reducing the effects of drainage.
Fig. 3. To mitigate the effect of drainage of the initial well, both on the fracture efficacy of the new well and on the continued production of the initial well, water is injected into the original or initial wellbore. The water fills the high-perm fractures, reducing the effects of drainage.

THE SOLUTION

To help mitigate frac-hits, NCA and distributor, ELS, developed a method of driving, by fluid, a patent-pending well-additive treatment and method (nanoActiv), which is mechanically powered by highly surface-modified silicon dioxide particles. Nissan Chemical has been perfecting nanoparticle technology since 1951, and is one of the first companies to produce highly surface-modified colloidal particles for industrial applications.

The company’s nanoActiv technologies are highly surface-modified colloidal silica nanoparticles, designed to penetrate deep into the reservoir and persist with long efficacy. They are used for a variety of applications, including new well completions, remediations, re-stimulations and production services.

Through Brownian motion, nanoActiv HRT (hydrocarbon recovery technology) deploys what is known as “disjoining pressure,” a phenomenon that suggests nanoparticles lift hydrocarbons from the rock surface at the three-phase contact angle. The technology surrounds hydrocarbon drops, fragmenting them into smaller droplets, enabling efficient flowback to the wellbore. Once treated, particles exhibit substantial persistence and remain within the matrix and natural fracture network after contact flow-through, facilitating ongoing improved hydrocarbon mobility.

Another component of the treatment method uses nanoActiv  EFT (enhanced flowback technology), which is a nanoparticle micellar dispersion, stabilized using a synergistic combination of distinctive highly surface-modified silica nanoparticles, a soybean extract solvent, and a blend of surfactants. It exhibits an effective primary chemical action, enhanced with the added mechanical properties of the company’s nanotechnology. EFT delivers the unique advantages of diffusion, disjoining pressure and fragmentation. It also reduces interfacial tension for improved stimulation fluid interaction within the reservoir near the created and propped fracture facies, as well as throughout the entire propped fracture network—increasing initial oil and gas production.

LABORATORY RESEARCH

In 2019, Dr. Hassan Dehghanpour (University of Alberta) demonstrated the interfacial tension (IFT) reduction and wettability modification potential of the well-additive treatment. As wettability affects the relative permeability, the wetting state can significantly impact the productivity of a well. Scientific research concluded that the treatment method altered the wettability of Montney
formation core samples from oil-wet to water-wet conditions.

Due to wettability alteration, the technology imbibed more quickly into oil-saturated core plugs during Amott Cell testing, compared to the reservoir brine base case, Fig. 4.

Fig. 4. Oil droplets equilibrated on the oil-saturated Montney cores immersed in fresh water, reservoir brine, fresh water + nanoActiv and brine + nanoActiv, respectively.
Fig. 4. Oil droplets equilibrated on the oil-saturated Montney cores immersed in fresh water, reservoir brine, fresh water + nanoActiv and brine + nanoActiv, respectively.

Imbibition of the well-additive treatment expels the oil out of the core plug, and the measured volume of produced oil divided by the initial oil in the plug is reported as an oil recovery factor, Fig. 5.

Fig. 5. Oil recovery factor vs. time for twin core plugs immersed in brine and product solution.
Fig. 5. Oil recovery factor vs. time for twin core plugs immersed in brine and product solution.

MITIGATING FRAC HITS

“ELS informed us that frac hits were devastating production and operator profits,” explains John Southwell, NCA’s technical director, North America. “So, we worked together to develop a method of combining our patent-pending nanoparticles with a unique pre-loading technique, to mitigate the effects of frac hits.”

Nissan’s frac hit mitigation process begins when nanoActiv is deployed into the initial well during the re-pressurization process. The well-additive treatment, in HRT or EFT, is injected as pills or intermixed with a total volume of injected fluid. While the added fluid provides the benefits of a temporary high-stress barrier near the initial well, the nanoparticles provide the benefit of significant IFT reduction, as well as wettability modification near the wellbore, to create a much more favorable fluid-flow environment. Consequently, fracture interactions are mitigated, and more hydrocarbons are produced.

Shear fractures in infill wells are problematic in the Permian basin. Initial wells are getting crushed by offset fracs, and the infill wells, themselves, aren’t producing up to expectations. The frac hit mitigation technology is a key change element in improving production results of these closely spaced horizontal shale wells. “nanoActiv represents a step-change in technology that improves profitability” states Stephen Gornick, NCA chief reservoir engineer.

On a recent job in the Permian basin, Shear Frac Group LLC measured the type and amount of fractures created per second on the infill pad with their proprietary technology, Frac BRAIN. The infill well closest to the nanoActiv preloads showed a significant increase in the cumulative fracture count, compared to the other adjacent infill wells on the pad. Shear Frac’s engineer explained that normally infill wells have lower fracture counts, due to offset depletion; however, this was not observed in this well.

Shear Frac’s real-time, cloud-based tool links to the frac data van to help operators guide hydraulic fracture inputs and improve fracture surface area creation during operations. This technology provides a new measurement of rock failure and fracture efficiency, using surface pumping data to determine the amount of shear (complex) or tensile (planar) fractures created.

Engineers from the operator believe the reason that the initial preload was so effective with NCA’s EFT technology is because the small size (12-15 nm) of the surface-modified nanoparticles in the fluid caused the preload fluid to access parts of the tight rock that normal fluid wouldn’t enter—saturating the rock near the infill well. Combine that with a pressure barrier and lowering of the surface tension of the preload fluid by the components of EFT, and you get optimal infill fracturing. Add to this the fact that EFT was preloaded into initial wells, returned to oil production less than 10 days after coming online (one recent well is exceeding previous production amounts within the first week), and the operator is proceeding to target future pads as nanoActiv preload candidates.

FIELD RESULTS

nanoActiv has consistently caused oil to flow back sooner than the operator expected—with the well actually exceeding pre-treatment production levels. The product has been pumped in various initial well pre-load jobs across the Eagle Ford shale, and Anadarko and Permian basins.

The first case study presented consists of a treatment of 5,000 gal of product, injected as smaller-volume pills throughout the initial pre-load for a well in Dewitt County in the Eagle Ford. The treatment was allowed to soak for approximately 2½ weeks during the infill well work to allow the nanoparticles to diffuse out into the reservoir, and to alter the wettability of the formation to create more favorable fluid-flow conditions. For Well A, a significant increase in monthly oil production was observed, post-treatment, where the pre-load treatment has surpassed the previous production rate for more than six months, Fig. 6.

Fig. 6. Eagle Ford Well A. Data Source: Drilling Info.
Fig. 6. Eagle Ford Well A. Data Source: Drilling Info.

Well B shows the case history of the second initial well pre-load treatment in Dewitt County, Texas, in the Eagle Ford. Again, 5,000 gal were used for the treatment, with a soak time of approximately 2½ weeks. A significant increase in production can be seen for up to four months post-treatment, Fig. 7.

Fig. 7. Eagle Ford Well B. Data Source: Drilling Info.
Fig. 7. Eagle Ford Well B. Data Source: Drilling Info.

Well C shows production data from an Eagle Ford well in Dewitt County, which was treated with 2,500 gal of nanoActiv pills injected throughout the initial well pre-load with a 2½ week soak time. Similar to Well B, a significant increase in production was experienced for four months post-treatment, Fig. 8.

Fig. 8. Eagle Ford Well C. Data Source: Drilling Info.
Fig. 8. Eagle Ford Well C. Data Source: Drilling Info.

The operator of the above case study wells said, on average, initial well production was returning to only 65% bopd, prior to the offset fracture interference. However, after treatment with product preloads, they are seeing initial wells surpass previous production rates.

The second case study documents positive results in two Mississippian wells in Grady County, Okla. Well A was treated with 17,000 gal of product pumped intermittently throughout the initial well pre-load. The data demonstrate a reversed trend in the production losses caused by frac hits after treatment, Fig. 9.

Fig. 9. Mississippian Well A. Data Source: Drilling Info.
Fig. 9. Mississippian Well A. Data Source: Drilling Info.

A similar trend was observed in Well B, where the treatment volume was reduced to 4,500 gal, pumped throughout the preload job, with approximately 2½ weeks soak time, Fig. 10.

Fig. 10. Mississippian Well B. Data Source: Drilling Info.
Fig. 10. Mississippian Well B. Data Source: Drilling Info.

CONCLUSION

The effects of frac hits can be significantly mitigated by using the patent-pending process of combining a re-pressurization fluid with nanoActiv. The technologies work to reduce interfacial tension and modify wettability—allowing more hydrocarbons to be mobilized in a re-pressurized environment created by using large volumes of injected fluid. Consequently, frac hits are mitigated and more hydrocarbons are produced—increasing production and profitability.

The Authors ///

Stephen Gornick STEPHEN GORNICK is chief reservoir engineer for Nissan Chemical America. He specializes in reservoir engineering and formation evaluation in all major basins of North America, with an emphasis on unconventional reservoirs in Texas (Permian basin), Wyoming, Montana and North Dakota. Mr. Gornick owns interest in, and has operated oil and gas wells in the Rocky Mountains. He graduated from the Colorado School of Mines with a BS degree in petroleum engineering and an MS degree in mineral economics/operations research.
Yusra Khan Ahmad YUSRA KHAN AHMAD is senior petroleum engineer at Nissan Chemical America. She leads the company’s effort to research and develop nanoparticle-based chemical formulations for improved hydrocarbon recovery in fracture stimulation and well remediation. Ms. Ahmad earned a BS degree in chemical engineering from Syracuse University and holds an MS degree in petroleum engineering from the University of Texas at Austin. She also has authored several SPE papers.
John Southwell JOHN SOUTHWELL is technical director, North America, for Nissan Chemical America. He leads R&D and the technical team at NCA. Mr. Southwell specializes in the application development of nanotechnology, colloidal system design, and organic/polymer synthesis and design. He has a BA degree from Albion College and an MS degree in polymer chemistry from Central Michigan University.
