MPD wellbore seal monitoring and control provide deepwater maintenance solution

The novel approach of the Active Control Device enables active seal condition monitoring and control to compensate for seal wear. This feature provides deepwater rigs with a more sophisticated and effective means of maintenance.

Austin Johnson, AFGlobal Corporation

A fundamental rethinking of wellbore sealing technology is enabling a step change in deepwater managed pressure drilling (MPD) systems. The advance introduces an active seal condition monitoring and control capability while eliminating high-maintenance components. In turn, this enables acquisition of unique wear data for condition-based maintenance (CBM) and extends seal element service life, both of which are key to increasing MPD system availability and reducing maintenance and operating costs in deepwater operations.

ACTIVE CONDITION MONITORING & CONTROL

AFGlobal’s Active Control Device (ACD) is the industry’s first active, non-rotating MPD wellbore sealing technology. Using an externally-controlled sealing element, the ACD addresses operational and maintenance challenges resulting from the use of passive rotating control device (RCD) technology adapted for deep water from land applications. Instead of a passive, internally-energized seal element, the ACD sealing element is hydraulically controlled to actively compensate for changing conditions. This functionality ensures wellbore sealing integrity during high surface wellbore pressure events, such as connections, while extending service life under less-intensive wellbore pressure, such as when drilling ahead.

Significant for costly deepwater operations, ACD seal condition monitoring enables implementation of proactive MPD maintenance strategies. Without an indication of the seal condition, a rig is likely to replace it more frequently than necessary, leading to excess cost and wasted rig time. Active monitoring and control provide machine and process parameters to detect and identify seal element condition in situ, eliminating seal element condition uncertainty. Seal condition monitoring enables more sophisticated maintenance strategies, such as condition-based maintenance (CBM), allowing the rig to change the element only when necessary, improving rig efficiency and reducing risk of an unplanned failure.

RCD DEEPWATER CHALLENGES

Adapted from land applications, conventional RCD technology presents additional challenges to a deepwater rig in the form of operational uncertainty, rig time and maintenance costs. Overcoming these inherent challenges requires a fundamentally different approach to the MPD wellbore sealing system.

RCDs use a shaped sealing element attached to a bearing assembly. The seal effectiveness relies on the element’s shape and material properties. As drill pipe passes through the element, material on the internal diameter of the seal is worn. Passage of tool joints stretches the element and speeds the wear rate. Sharp edges on the pipe also can cut the seal element and cause it to split and fail. Gradually, a leak path develops, leading to seal failure.

The RCD seal element is attached to a bearing assembly that rotates with the pipe to reduce effects of drill pipe motion. The bearing assembly must have low break-out torque and friction coefficient for the element to spin with the pipe. To accomplish this, regular bearing service is performed. Specialized technical maintenance expertise is required to inspect and repair bearing assemblies, increasing RCD operating costs.

Fig. 1. The Active Control Device (left) uses dual annular packers (center) to engage a dual-sleeve element assembly (right), forming a wellbore seal against rotating drillstring.
Fig. 1. The Active Control Device (left) uses dual annular packers (center) to engage a dual-sleeve element assembly (right), forming a wellbore seal against rotating drillstring.

In deepwater operations, larger-diameter pipe requires a larger-diameter bearing assembly. The larger bearing has downstream effects of greater parasitic torque and a greater rotary seal radius. Higher break-out torque increases the possibility that the element will fail to rotate with the pipe, leading to premature failure. The larger rotary seal radius results in greater surface velocities, increasing wear rate. Failure of the rotary seal may result in an increased risk of a malfunction.

Due to the simplistic nature of the seal element, there is no way to monitor its condition, nor is there a parameter to adjust, to improve seal quality. Combined, the uncertainty around the remaining seal life becomes problematic. A seal element failure may occur without warning. Unable to intervene, the rig must stop drilling operations to replace the seal element assembly.

As a precaution against unplanned failure, preventative maintenance is performed on the RCD by replacing the seal assembly at any convenient moment. This approach prevents some, but not all, unplanned seal failures.

Additionally, during non-MPD operations, many RCDs require running a protective wear sleeve to prevent damage to the inner sealing faces of the RCD housing. This practice consumes additional rig time and reduces the available inner diameter of the riser.

DEEPWATER SEALING SOLUTION

The ACD addresses the inherent deficiencies of passive deepwater RCDs. It uses dual, non-rotating API 16RCD seal sleeve elements, each of which is externally energized by an API 16A annular packer assembly. The device eliminates the use of a bearing assembly, significantly reducing the operating costs, Fig. 1.

In operation, the ACD seal sleeve elements are controlled by adjusting the annular packer closing pressure. Control variables, such as packer closing pressure and lubrication pressure, are precisely controlled. The active control system allows application of the optimal closing force, based on the drilling parameters. As the seal material wears, the active control system maintains a prescribed closing force to ensure the wellbore seal throughout the seal’s life.

Variations between control variables indicate when an element should be replaced. The control system feeds data to the condition monitoring system. The condition monitoring system alerts the crew when the seal sleeve assembly should be changed, prior to the loss of wellbore pressure.

By alerting the crew to perform maintenance, only when necessary, condition-based maintenance reduces unnecessary intervention, increasing the on-bottom drilling time. Rigorous full-scale trials show the ACD seal element lasts nearly 40% longer than the elements used in conventional RCDs.

SYSTEM DESIGN AND APPLICATION

The ACD is integrated into the drilling riser as part of the MPD specialty joint. During non-MPD sections, locking dogs are retracted to allow full-bore riser access. The ACD does not require a protective wear sleeve during non-MPD sections.

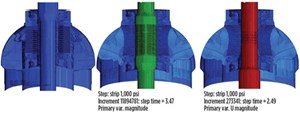

Fig. 2. Active Control Device operations: packers relaxed (left); packers applying closing force to seal sleeve against pipe body (center); and against tool joint (right).
Fig. 2. Active Control Device operations: packers relaxed (left); packers applying closing force to seal sleeve against pipe body (center); and against tool joint (right).

During MPD sections, the seal sleeve elements are joined into a seal sleeve assembly. The running tool functions with the elements in a relaxed state (drill pipe tool joint diameter drifting through the element). The extended lower locking dogs provide a landing shoulder for the assembly. Once landed, the extended upper locking dogs lock the seal sleeve assembly in place.

An active, direct hydraulic closed-loop control system powers and monitors the ACD. The active control system adjusts each seal element independently, allowing the closing force to be optimized. Closed-loop architecture reduces power fluid contamination risk and enables selection of optimal power fluid types. The direct hydraulic design places all control valves at the surface, along with instrumentation to monitor control parameters.

The active control system initializes the wellbore seal. Hydraulic power fluid injection into the annular packer closing chambers closes the packers on the seal sleeves. The packers push the seal element inward to contact the drillstring, forming the wellbore seal, Fig. 2.

A lubrication system injects drilling mud from the active pit into the lubrication chamber formed between the seal sleeve elements. Injection of mud lubricates and cools the seal faces of the elements. Lubrication pressure is maintained above the wellbore pressure in operation, a condition referred to as positive differential chamber pressure. The pressure ensures that any leakage across the lower seal travels into the well, rather than toward the rig. This feature is not available in passive RCD systems.

The seal sleeve elements are composed of a polymer-based honeycomb seal insert, co-molded with a polyurethane buffer material. The seal insert provides wear resistance during drillstring rotation, while the buffer material supports the seal insert and acts as a secondary seal material after the seal insert is worn.

CONDITION MONITORING

Use of the active control system uniquely enables seal condition monitoring to indicate the seal state, while the assembly is active subsea. The externally supplied utilities controlling the ACD provide data sources to quantify the seal wear state.

The seal sleeve elements insert and buffer material each have distinctive material properties and characteristics. Taken together, the two materials act as one and require one closing pressure to create a seal. As the insert wears, its contribution to the closing pressure decreases, resulting in a different closing pressure. The resulting pressure change indicates the wear state and alerts the crew that a replacement element will soon be required. Maintenance can be scheduled to optimize rig operations.

FULL-SCALE TESTING

A full-scale test facility has been purpose-built to subject the ACD to field conditions, prior to the first offshore usage. Testing under field conditions de-risks the adoption of new technologies and reduces the rig time consumed during commissioning. The AFGlobal test rig allows simultaneous drillstring rotation up to 310 rpm, drillstring reciprocation up to 2 ft/sec, and wellbore pressure up to 2,000 psi. The test rig uses production drill pipe tool joints and support water, oil and synthetic-based drilling muds. These test rig capabilities far exceed testing requirements set forth in API Specification 16RCD.

During 2018, the ACD underwent optimization testing and API 16RCD monogram qualification testing. The optimization testing included a variety of tests that mirror drilling activities on a deepwater rig.

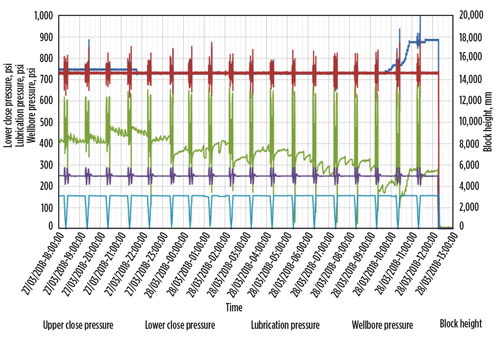

Fig. 3. Drill mode test data.
Fig. 3. Drill mode test data.

Drill mode testing was conducted to determine seal life when drilling with 250 psi of surface pressure at 160-rpm drill pipe rotation. The test ran for 118 rotating hours and, including passage of 236 tool joints, rotated through the system, comparable to 10,620 ft of Range III drill pipe.

Wellbore pressure is contained over the duration of the test, demonstrating that the ACD fulfills the primary objective of sealing the well.

Test data from the final 18 hr of the test are shown in the plot in Fig. 3. For the first 116 hr, the closing pressure required to maintain wellbore pressure and lubrication pressure changed very little.

After 116 rotating hours, the seal sleeve wear indicator is observed. At this point, lubrication pressure decreases, while the upper and lower packer closing pressures remain constant. This sudden change in lubrication pressure indicates the seal sleeve insert is worn and that only buffer material is in play.

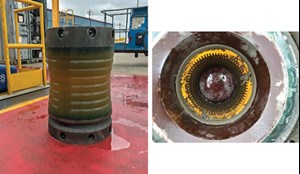

Fig. 4. Post-test upper seal sleeve inspection validated wear, as indicated by condition monitoring.
Fig. 4. Post-test upper seal sleeve inspection validated wear, as indicated by condition monitoring.

In response to the wear indicator, a significant upper packer closing pressure increase (~20 %) was applied during the next 2 hr of rotation, and allowed reestablishment of the lubrication pressure. This demonstrated the ACD’s unique ability to seal, even when an element is worn.

The seal sleeve assembly was inspected following the test. As anticipated, examination revealed the upper seal insert had worn, while the lower insert remained intact. Lower seal sleeve measurements indicated approximately 50% of the seal insert wall thickness remained. With the lower seal sleeve polymer insert intact, the system maintained wellbore pressure, with no change to the closing pressure, Fig. 4.

A practical benefit of this finding is that the rig may detect the upper seal sleeve polymer insert is worn by the decreased lubrication pressure or increased closing pressure. Upon detection of the worn upper seal sleeve element insert, the rig is able to continue operations while holding pressure for an additional amount of time before the lower seal element requires replacement.

IMPROVING DEEPWATER MPD

The novel approach of the ACD enables active seal condition monitoring and control to compensate for seal wear. This feature provides deepwater rigs with a more sophisticated and effective means of maintenance. Extensive full-scale testing and API monogram certification show that the ACD offers a significant advance for extending seal life, enabling CBM to increase MPD system availability and reduce maintenance and operating costs in deepwater operations. In these challenging drilling environments, the active MPD wellbore seal monitoring and control technology provides a unique opportunity to improve rig economics, operations and safety.
